JK SAFETY RELIEF VALVE JSV-LT12

JK PRESSURE REDUCING VALVE

Features
JK PRESSURE REDUCING VALVE
Type JRV-SF16 (Former SF11)
SIZE DN : 15-80MM.
FLANG : PN16, 25, 40

- Secondary pressure must be less than 80% of primary pressure
- Minimum pressure differential across the disc : 0.7kgf/cm2{0.07MPa}
- Leakage allowance : Less than 0.05% of rated flow
- Hydraulic pressure test : JRV-SF16/15kgf/cm2{1.5MPa}

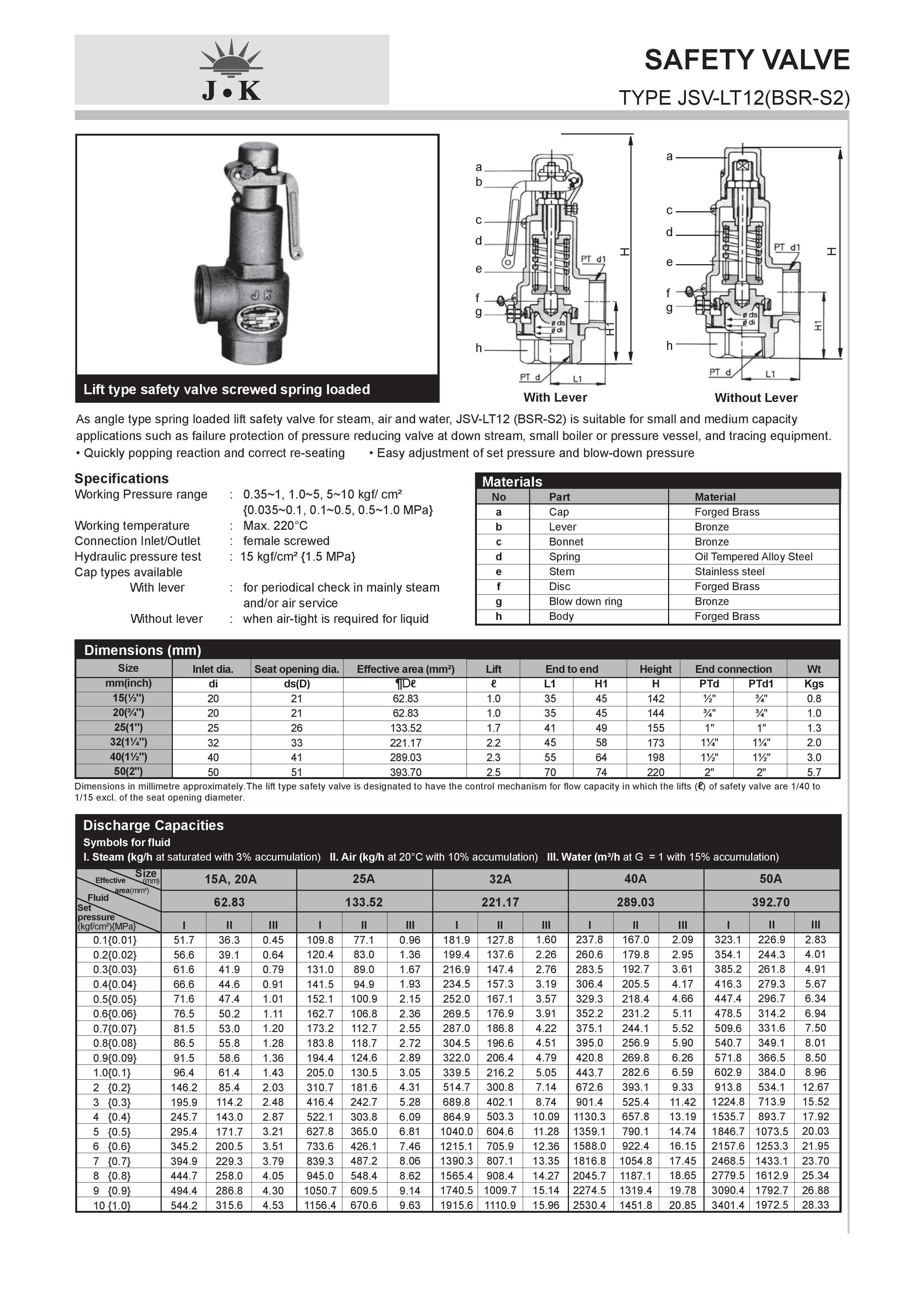

JK, Safety Relief Valve Model : JSV-LT12 Size : 25A (1")

JK,Jokwang Safety valve JSV-HT41, 50x50A Set Pressure 23.5 kgf/cm3 Stainless body
