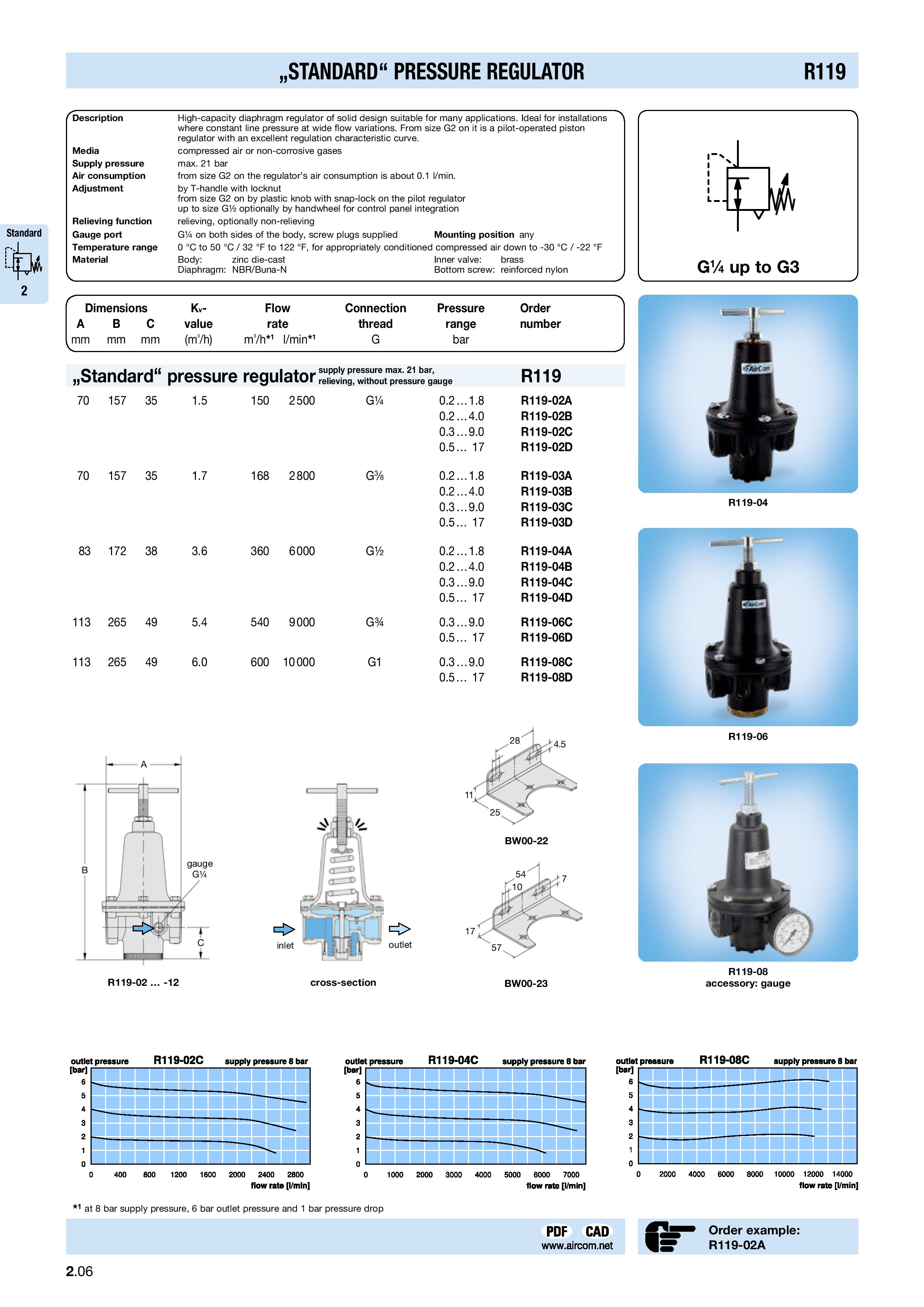

PRESSURE REGULATOR HIGH-CAPACITY

PRESSURE REGULATOR STANDARD
MODEL : R119

DESCRIPTION:
HIGH-CAPACITY DIAPHRAGM REGULATOR
OF SOLID DESIGN SUITABLE FOR MANY
APPLICATIONS. IDEAL
FOR INSTALLATIONS WHERE CONSTANT LINE PRESSURE
AT WIDE FLOW VARIATIONS.
FROM SIZE G2 ON IT IS A PILOT-OPERATED
PISTON REGULATOR WITH AN
EXCELLENT REGULATION CHARACTERISTIC CURVE.
CONTROL IS EFFECTED BY A
PRESSURE REGULATOR WITH EXTERNAL FEEDBACK.

MEDIA:  COMPRESSED AIR OR NON-CORROSIVE GASES
SUPPLY_PRESSURE: MAX. 21 BAR

AIR_CONSUMPTION: FROM SIZE G2 ON
THE REGULATOR’S AIR CONSUMPTION IS ABOUT 0.1 L/MIN.

ADJUSTMENT:
- BY T-HANDLE WITH LOCKNUT
- FROM SIZE G2 ON BY PLASTIC KNOB
WITH SNAP-LOCK ON THE PILOT REGULATOR
- UP TO SIZE G1/2 OPTIONALLY BY HANDWHEEL FOR
CONTROL PANEL INTEGRATION

RELIEVING_FUNCTION: RELIEVING, OPTIONALLY NON-RELIEVING

GAUGE_PORT: G1/4 ON BOTH SIDES
OF THE BODY, SCREW PLUGS SUPPLIED
MOUNTING_POSITION: ANY

TEMPERATURE_RANGE:
0 .C TO 50 .C / 32 .F TO 122 .F,
FOR APPROPRIATELY CONDITIONED COMPRESSED
AIR DOWN TO -30 .C / -22 .F

BODY: ZINC DIE-CAST
INNER_VALVE: BRASS
DIAPHRAGM: NBR/BUNA-N
BOTTOM_SCREW: REINFORCED NYLON
